Application

The cables are suitable for power and lighting circuits and building wiring suitable for use in semi flush exposed conduits, embedded conduits and in closed installation ducts. Ideal for internal wiring of appliance.

Standard

BS 6004:2012, EN 50363-3 with BS 7655-4.2 (Only for sheath)

Technical Data

Voltage Rating: 1.5 mm² to 35 mm² – 300 / 500V

Harmonised Designation: -15°C to 70 °C

Minimum Bending Radius:

Upto 10 mm²: 10 X Overall Diameter

16 & 35 mm²: 12 X Overall Diameter

16 & 35 mm²: 12 X Overall Diameter.

Test Voltage: 2 kV for 15 min

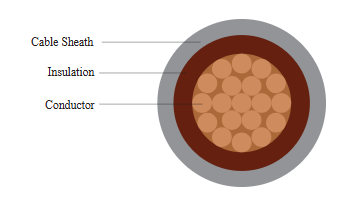

Construction

Conductor : Plain annealed copper conductor : 1.5 & 2.5 mm² Class -1, 4.0 to 35 mm² stranded Class 2 complying with BS EN 60228, HD 383, IEC 60228

Insulation : PVC (Polyvinyl Chloride ) compound type TI 1 complying with EN 50363-3

Sheath : PVC (Polyvinyl Chloride ) compound type Type 6 complying with BS 7655-4.2

Insulation Colours : Blue and brown

Sheath Colou : Grey RAL 7001
