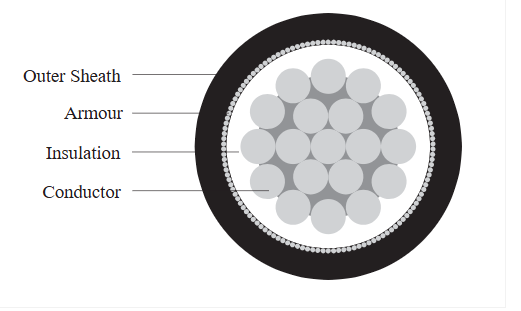

Cable Construction

Conductor: AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact Cl. 2 as per IS 8130 In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm & above stranded round or stranded compact Cl. 2 as per IS 8130

Insulation: Crosslinked polyethylene (XLPE)

Core Color: Red or yellow or blue or black

Armouring: Single armouring of aluminum strip or aluminum wire as per IS 7098 P – 1

Outer Sheath: PVC Type ST – 2 as per IS 5831 (Option : FR Type / FRLS Type)

Cable Color: Black (Options : Any other color as per requirement)

Cable Design Parameters

While ordering, in addition to the part number the following details shall also be advised: Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2). Sheath Type – PVC Type ST – 2 (FR or FRLS). Colour from above technical details.
