Application

Used as an indoor general wiring cable primarily for installations in public areas or in any application where fire safety is utmost important. The cable can be used as pendant lighting drops or as a general supply lead within hospital, hotels, airport, educational institutions, etc.

Standard

BS EN 50525-3-11

Technical Data

Nominal Voltage: U / U 300/500 V

Temperature Range: Flexing -5°C to +70°C. Fixed Installation : -30°C to +70°C

Minimum Bending Radius: Flexing 7.5 x cable ø; Fixed installation 4 x cable ø

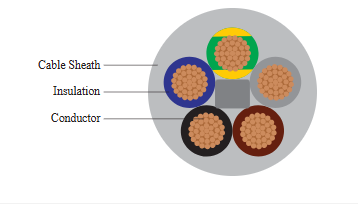

Cable Construction

Conductor: Bare copper, fine wire conductors, as per EN 60228 Cl.5

Insulation: LSZH (Low Smoke Zero Halogen) core insulation Type TI6, BS EN 50363-7

Core colours: Harmonised core colour to HD 308 (Refer Appendix Table No. 1-1). Cores stranded in layers with optimal lay-length

Outer sheath: LSZH (Low Smoke Zero Halogen) outer sheath Type TM7, to BS EN 50363-8

Properties

 Self-extinguishing and flame retardant according to IEC 60332-1-2
