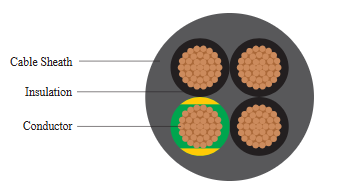

Application For use in connections of household appliances and wiring purposes. It is also used in manufacture of cords Standard Adapted to DIN VDE 0281, 0293, 0295 with insulation thickness for 1.0 kV type. Technical Data Nominal Voltage: Uo/U 450/750V Insulation Resistance: Min. 20 GΩ x cm Temperature Range: Flexing -5°C to +70°C Fixed Installation : -30°C to +70°C Minimum Bending Radius: Flexing 7.5 x cable ø. Fixed Installation 4 x cable ø Test Voltage: 4000V Breakdown Voltage: Min. 8000V Cable Construction Bare copper, fine wire conductors, as per EN 60228 Cl.5.
Special PVC core insulation TI2, to EN 50363-3.
Harmonised core colour to HD 308 (Refer Appendix Table No. 1-1).
For cores above 5, black core with continuous white numbering according to DIN VDE 0293.
Green-Yellow earth core in outer layer (3 cores and above).
Cores stranded in layers with optimal lay-length.
Special PVC outer sheath TM2, to EN 50363-4.1.
Colour Grey (RAL 7001).
