Application

Halogen-free cables for airports railway station, plant engineering and Industrial machinery

Standard

Adapted to EN 50525-3-11

Technical Data

Nominal Voltage: UO / U 450 / 750V

Temperature Range: Flexing -15°C to +70°C. Fixed installation -30°C to +70°C

Minimum Bending Radius: Flexing approx. 15 x cable ø. Fixed installation approx. 4 x cable ø

Test Voltage: 3000V

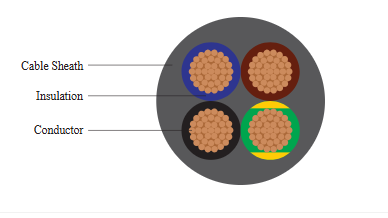

Cable Construction

 Bare copper, fine wire conductors, to EN 60228 Cl. 5.

 Core insulation of halogen-free compound TI6 to EN 50363-7.

 Colour coded to DIN VDE 0293-308 (Refer Appendix Table No. 1-1).

 Green/Yellow earth core in outer layer.

 Cores stranded in layers with optimal lay-length.

 Halogen-Free sheath compound TM7, to EN 50363-8.

 Sheath colour grey (RAL 7001).

Properties

 Flame retardant to IEC 60332-1-2.

 No flame propagation according to IEC 60332-3-24 (flame spread on Vertical cable or wire bundle).

 Halogen free according to IEC 60754-1.

 Corrosive gas evolution to IEC 60754-2.
