Application

These cables are used as data and control cable in machinery. The high level of screening ensures a high degree of interference protection. The PVC-inner sheaths of these cables raise the mechanical strength. Such cables can also be used for outdoor applications for the permitted temperature range.

Technical Data

Standard: Adapted to EN 50525-2-51

Nominal Voltage: Uo / U 300 / 500 V

Insulation Resistance: Min. 20 GΩ x cm

Temperature Range: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

Minimum Bending Radius: Flexing 20 x cable ø. Fixed installation 6 x cable ø

Test Voltage: Core/core: 4000V. Core/screen: 2000V

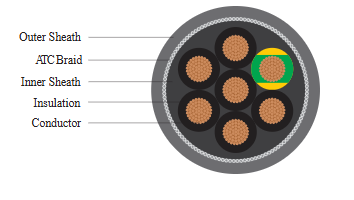

Cable Construction

 Bare copper, fine wire conductors according to EN 60228 cl. 5.

 Core insulation of PVC TI2, EN 50363-3.

 Black core with continuous white numbering to DIN VDE 0293

 Green/yellow earth core in outer layer (3 cores and above).

 Cores stranded in layers with optimal lay-length.

 Special PVC inner jacket.

 Tinned copper braided screen.

 Special polyurethane outer sheath (PUR).

Sheath colour: Grey (RAL 7001).

Properties

 Extensively oil resistant.

 Abrasion and notch resistant.

 Low adhesive surface.

 Resistant to hydrolysis and microbes.

 UV resistant to ASTM G 154.

 The screening density assures disturbance-free transmission of all signals and impulses.

 To optimize the EMC features we recommend a large round contact of copper braiding on both ends.
