Application

Wiring cable in tool machinery, conveyor belts and production lines, plant engineering, Industrial machinery, air conditioning, steel production plants and rolling mills. The dense coverage of copper screening offers EMI compliance.

Standard

Adapted to DIN VDE 0262/12.95 and 0281 Part 13 with insulation thickness for 1 kV type.

Technical Data

Nominal Voltage: UO / U 0.6 / 1kV

Insulation Resistance: Min. 20 GΩ x cm

Temperature Range: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

Minimum Bending Radius: Flexing 20 x cable ø. Fixed installation 6 x cable ø

Test Voltage: 4000V

Breakdown Voltage: Min. 8000V

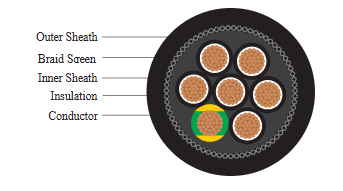

Cable Construction

 Bare copper, fine wire conductors, to EN 60228 Cl.5

 Core insulation of special PVC TI2, EN 50363-3.

 Black Core with continuous white numbering to DIN VDE 0293.

 Green/yellow earth core in outer layer (3 cores and above).

 Cores stranded in layers with optimal lay-length.

 PVC inner jacket, Black color.

 Tinned copper, braided screen, approx 85% coverage

 Special PVC outer sheath TM2, to EN 50363-4.1.

 Colour Black (RAL 9005).

Properties

 PVC self-extinguishing and flame retardant according to IEC 60332-1-2.

 UV & weather resistant according to ASTM G 154.

 Ozone resistant according to EN 50396.
