Application

The high level of screening reduces substantially the effects of electrical disturbances. These cables are used for data & signal transmission. These cables are integral part of instrumentation in industries for precise signal and data transmission.

Technical Data

Standard: Based on VDE 0812

Voltage grade (not for power installation) : 0.14 mm² = 350 V; >/= 0.25 mm² = 500V

Insulation Resistance: Min. 20 GΩ x cm

Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

Minimum Bending Radius: Flexing 15 x cable ø. Fixed installation 6 x cable ø

Test Voltage : Up to 0.25 mm²: 1200 V; > 0.34 mm² : 1500 V

Capacitance (approx. Value): Up to 0.34 mm²

 C/C = 120 nF/km. C/S = 160 nF/km

 0.5 mm² to 1.5 mm²

 C/C = 160 nF/km. C/S = 240 nF/km

Inductance: Approx. 0.65 mH/km

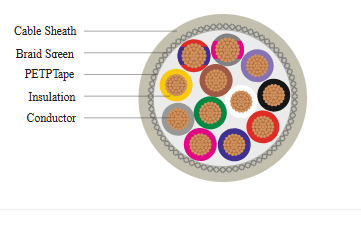

Cable Construction

 Bare copper, fine wire conductors stranded according to DIN VDE 0295/ EN 60228 cl. 5,

 Conductor make-up for

 0.14 mm² = 18 x 0.1 mm.

 0.25 mm² = 14 x 0.15 mm.

 0.34 mm² = 19 x 0.15 mm.

 Special PVC core insulation TI2, to EN 50363-3.

 Colour coded to DIN 47100 (Refer table no. 2-1).

 Cores stranded in pair with optimal lay-length.

 Cores stranded in layers with optimal lay-length.

 Tinned copper braided screen, approx 85% coverage.

 Special PVC outer sheath TM2, to EN 50363-4.1.

 Sheath colour grey (RAL 7032).

Properties

PVC self-extinguishing and flame retardant according to EN 60332-1-2. The twisted pair construction further reduces crosstalk and electromagnetic interferences, enhancing the signal transmission characteristics
