Standard

Adapted to EN 50288-7

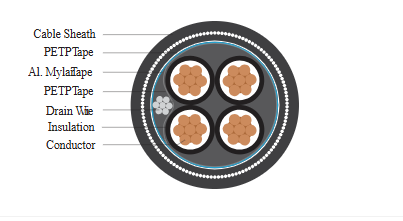

Cable Construction

Conductor: Annealed copper wires according to BS EN 60228

Insulation: Cross-linked polyethylene XLPE

Colour Code: Black, continuously numbered in white

Wrapping: 1 layer of PETP tape

Collective Screen: Aluminium / PETP tape over tinned copper drain wire

Cable Sheath: Polyvinyl Chloride PVC (Also available in halogen free construction on request.)

Colour: Black. Blue for intrinsically safe system

Technical Data

Flame Propagation: EN 60332-1-2

Operating Temperature Range: -30°C to +90°C

Bending Radius: 7.5 x cable diameter

Operating Voltage: 500V *Also available in 300V variant on request.

Marking: RR KABEL RE-2X(St)Y nxmxa 500V EN50288-7 CE + 0001m

c: No. of cores

a: Cross sectional area
