Standard

Adapted to EN 50288-7

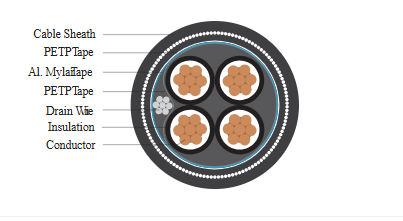

Cable Construction

Conductor: Annealed copper wires according to BS EN 60228

Insulation: Polyvinyl chloride PVC

Pairs: Twisted

Identification Pairs: Black & white, continuously numbered on white core (1, 2, 3…) for multi-element

Assembly: Concentric layers

Collective Screen: Aluminium / PETP tape over tinned copper drain wire

Inner Sheath: Polyvinyl chloride PVC

Armour: Galvanised round steel wires

Cable Sheath: Polyvinyl chloride PVC

Colour: Black. Blue for intrinsically safe system

Technical Data

Flame Propagation: EN 60332-1-2

Operating Temperature Range: -30°C to +70°C

Bending Radius: 10 x cable diameter

Operating Voltage: 500V *Also available in 300V variant on request.

Marking: RR KABEL RE-2X(St)Y nxmxa 500V EN50288-7 CE + 0001m

n: No. of pairs

m: Pairs

a: Cross sectional area
