Application

These cables are used for internal wiring of switchboards, electronic and electrical equipment, e. g. households, radio of televisions, monitor and control desks.

Technical Data

Standard: UL – Std. 758 , CSA C 22.2 No. 210

Nominal Voltage: 300V

Test Voltage: 2000V Test Voltage (Spark Test)

AWG 26-20: 4kV, AWG 10 -18 : 5kV

Temperature Range: Flexible -5°C to +80°C. Fixed installation -20°C to + 80°C CSA – AWM I A/B

Bending Radius: Flexing 10 x cable ø. Fixed installation 5 x cable ø

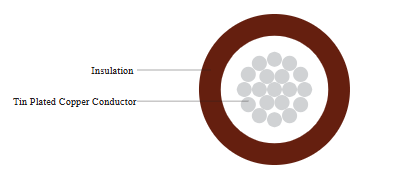

Cable Construction

Annealed plain or tinned stranded copper conductor.
PVC – core insulation according to UL – Standard 1581, Class 43 Tab. 50.182, heat and damp resistant.

Properties
