Application

These cables are used for internal wiring of panels and electrical equipment. These are used as connection wire in machines laid in protective tubes and flexible pipes and also for motors and transformers.

Technical Data

Standard: UL – Std. 758, CSA C 22.2 No. 210

Nominal Voltage: 600V

UL: type AWM 105°C 600V

CSA: type AWM 105°C 600V

Test Voltage (Spark Test):

AWG 24: 4kV

AWG 22 and 20: 5kV

AWG 18 to 16: 6kV

≥ AWG 8: 7.5kV

Temperature Range: Flexing -5°C to +105°C. Fixed installation -20°C to +105°C

Temperature at Conductor: Max. UL and CSA : +105°C

Bending Radius: Flexing 10 x cable ø’. Fixed installation 5 x cable ø

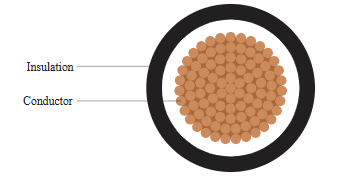

Cable Construction

Annealed plain or tinned stranded copper conductor.
PVC – core insulation according to UL – Standard 1581, Class 43 Tab. 50.182, heat and damp resistant.

Properties
