Application

PVC-insulated heavy wall lead wire, for use as hook – up wire and for internal wiring on refrigeration equipments.

Technical Data

Standard: UL – Std. 758 , CSA C 22.2 No.210

Temperature Range: -20°C to 105°C

Nominal Voltage: 600V

Test Voltage (Spark Test):

AWG 18 to 16 : 6kV

≥ AWG 8: 7.5kV

Bending Radius: Fixed installation 5 x cable ø

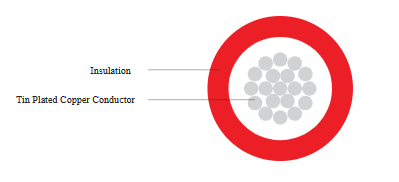

Cable Construction

Annealed plain or tinned stranded copper conductor.
PVC – core insulation Type TW, Recognized Component QMTT2 heat and damp resistant.

Properties
