UL 2587

product

Application

Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment and moderate flexing applications.

Technical Data

Standard: UL – Std. 758; Control cable of special – PVC to UL AWM; Style 2587 cores according to UL 1015

Nominal Voltage: 600V

Test Voltage: 3000V

Temperature Range: Flexing -5°C to +90°C. Fixed installation -20°C to + 90°C

Insulation Resistance : Min 20 MΩ x km

Minimum Bending Radius: For permanent approx, 7.5 x cable ø

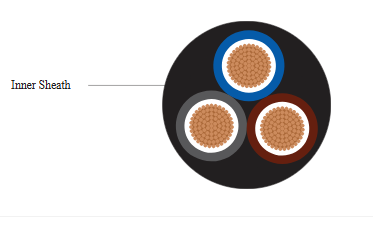

Cable Construction

  • Bare copper, fine wire conductors 0.5 – 35 Sq. mm (as per AWG – cross sections).
  • Special PVC core insulation class 43 to UL Standard 1581; color codes as per H05VV – F upto 5 cores.
  • Black conductors with consecutive numbering in white for above 5 cores.
  • Green – yellow earth core in the outer layer (3 cores and above).
  • Cores stranded in layers with optimal lay – length.
  • Special PVC outer sheath class 43 to UL Standard 1581 colour grey (RAL 7001).
  • PVC self – extinguishing and flame retardant, test method VW – 1, FT 1.

Properties

  • Suitable for installation in dry, moist or wet environment.
  • Resistant to mineral oils, synthetic oils and water based coolants. Aids easy stripping of sheath due to use of adequate Talc.
