Approvals: IS 694 marked, FIA / TAC

Voltage Grade: Up to and including 1100V

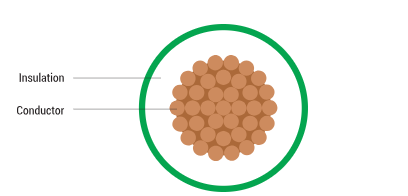

Conductor: Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility. The drawn strands are uni-laid with high precision and compacted. Thus forming a perfectly circular conductor which enables reduction in overall diameter for space saving in high density wiring.

Conductor Speciality: The strands do not get cut when stripping the insulation. The conductor offers perfect contact at pins, terminals and sockets. Thus, eliminating spot heating and sparking.

Insulation: Specially formulated heat resistant & flame retardant PVC insulation is used. The HR FR property retards the propagation of flame without compromising safety.

Insulation Conformity: IS 5831, Type C – HR 85°C + FR
