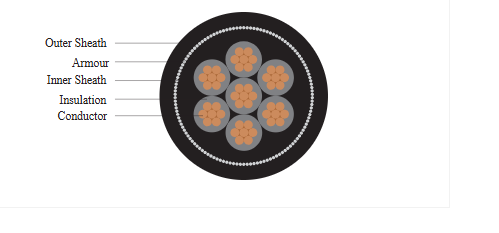

Cable Construction

 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth

 1.5 Sq. mm copper conductor, PVC insulated unarmoured & galvanised steel strip / wire armoured control cables as per IS 1554 Part – 1.

Conductor: CU conductor solid as per Cl.1 IS 8130 or stranded as per Cl. 2 IS 8130

Insulation Materia: PVC Type -A as per IS 5831/Option : HR PVC (Type-C ) as per IS 5831. Nominal Thickness of Insulation is 0.8 mm.

Core Colours: Up to 5 cores by colour coding & more than 5 cores number printing on core as per IS 1554 (P-1)

Inner Sheath: PVC / PVC tape as per IS 1554 (P – 1)

Armouring: Single armouring of galvanised steel strip / wire

Outer Sheath : PVC Type ST – 1 as per IS 5831 (Option : PVC Type ST – 2 as per IS 5831, FR Type / FRLS Type)

Cable Color: Black (Options : Any other color as per requirement)

Cable Design Parameters

While ordering, in addition to the part number the following details shall also be advised:

 Class of conductor – Cl. 1 or 2.

 Insulation Type – PVC Type A / C.

 Sheath Type – PVC Type ST – 1 / FR / FRLS; PVC Type ST – 2 / FR / FRLS.
